ZOUPW 480W 両面発電ポータブルソーラーパネル | 折りたたみ式 N型 16BB
- 先進的な複合素材表面 — 従来のETFEパネルよりも高い光透過率、優れた耐久性、より長いアウトドア寿命を実現します。
- 無損切断（ゼロカット）技術採用セル — マイクロクラック（目に見えないひび割れ）を完全に排除し、出力低下を最小限に抑え、長期間にわたる圧倒的な安定性を保証します。
- 両面発電（バイフェイシャル）デザイン — パネルの表裏両面から太陽光を吸収。地面からの反射光を利用することで、実際の発電量を最大30%増加させます。
- 超軽量＆高出力密度 — わずか10.2kg（22.5 lbs）の軽量設計。業界トップクラスの出力重量比（21.3 W/lb）を誇ります。
- 高効率N型16BBテクノロジー — 電流の収集と変換効率を劇的に向上させると同時に、内部の抵抗損失を大幅に削減します。

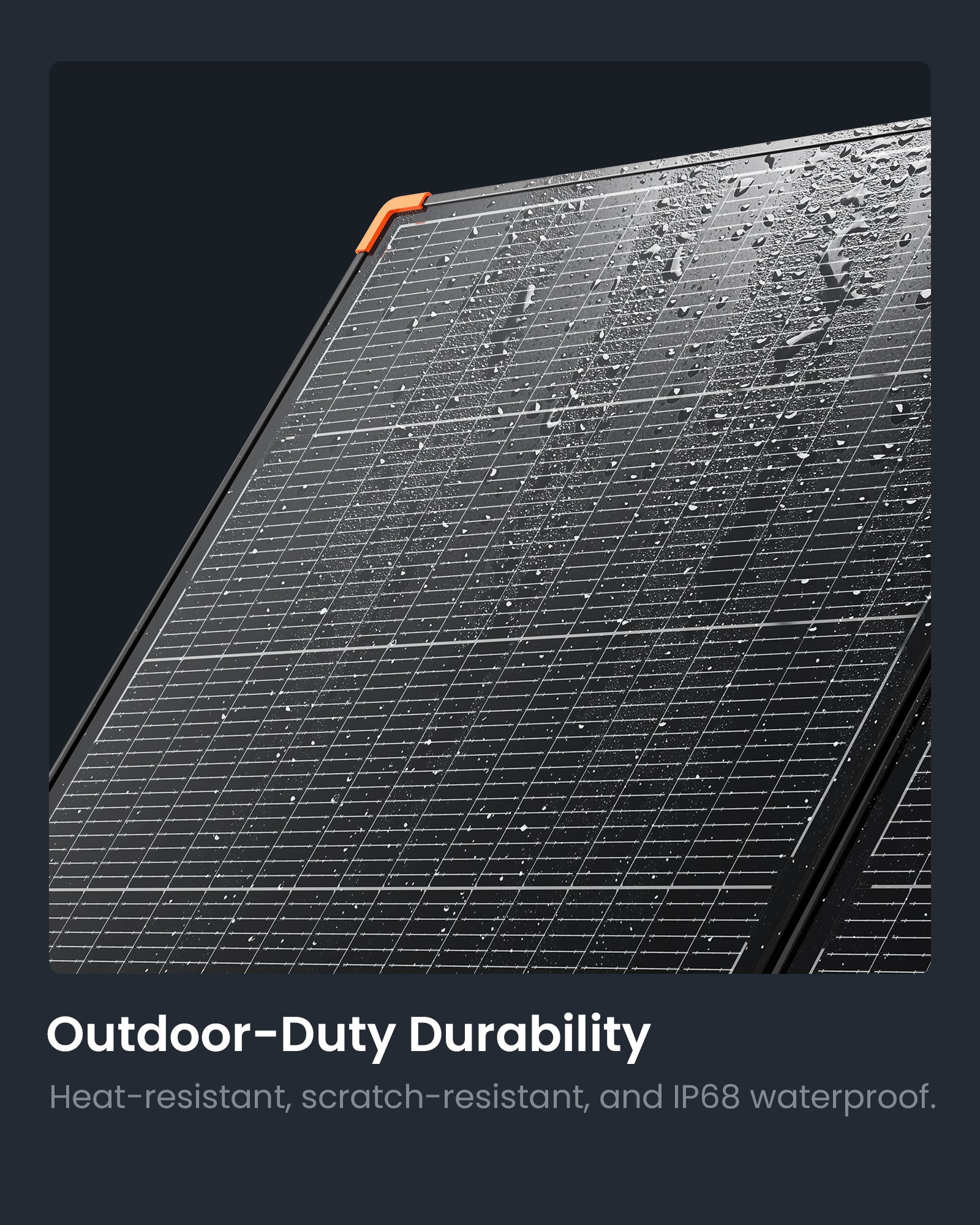

- 過酷なアウトドア環境に対応 — IP68の完全防塵防水設計。猛暑や大雨、不均一な日照条件下でも安定した電力を供給します。
シェア

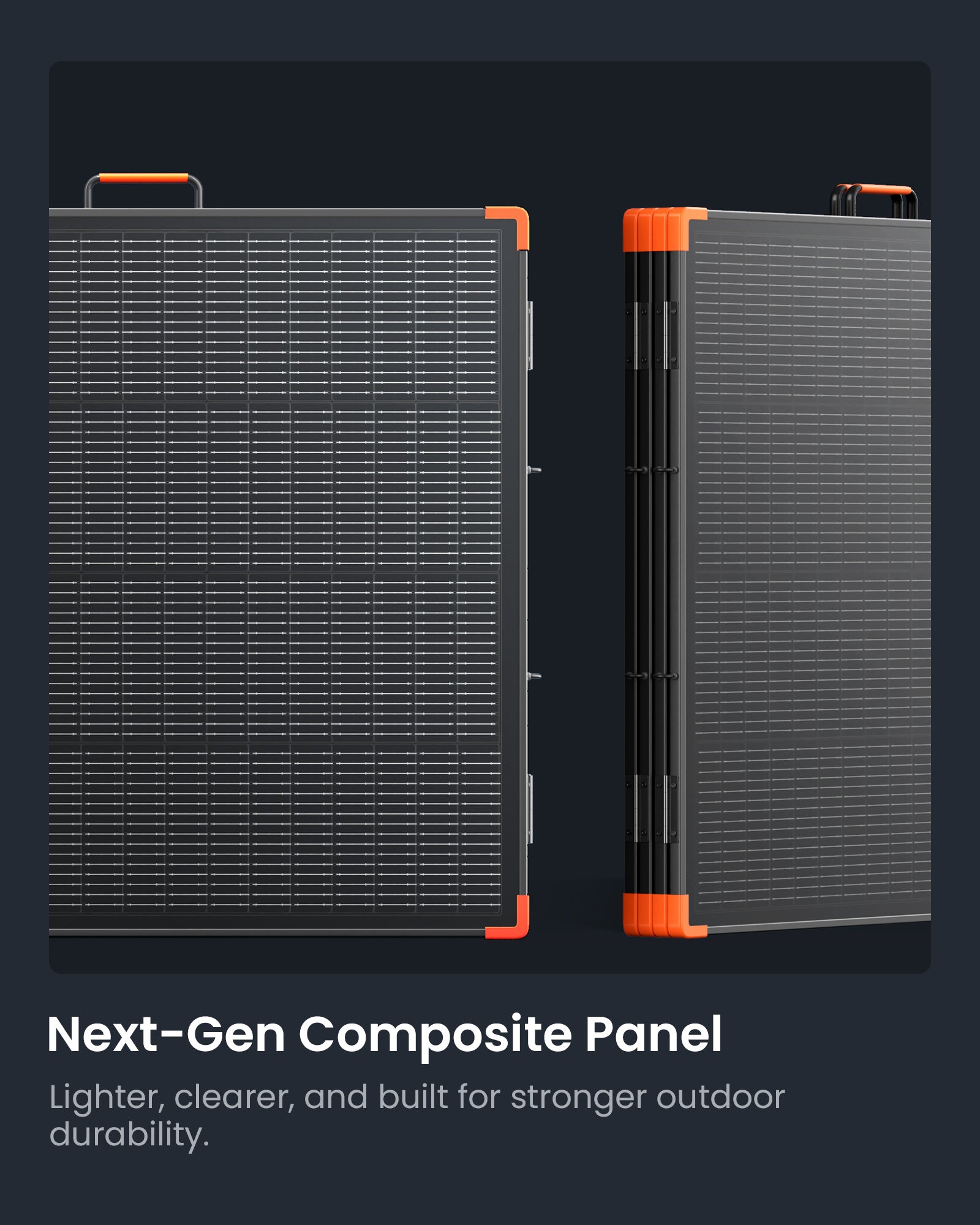

Industry-Leading Composite Solar Panel Design
The Zoupw 480W solar panel features an advanced composite material surface engineered to outperform traditional ETFE and laminated panels—delivering higher efficiency, longer lifespan, and superior durability in real-world outdoor conditions.

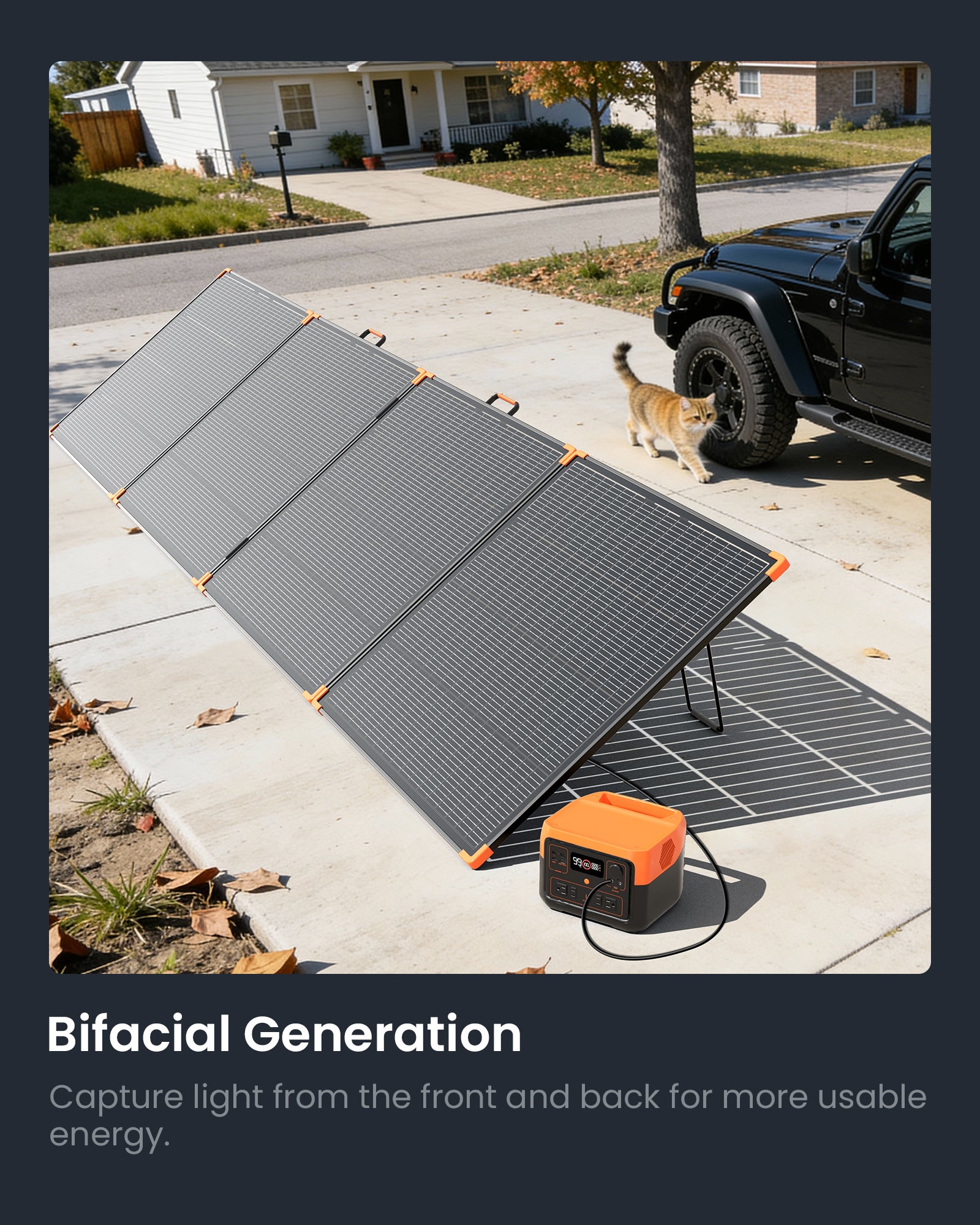

Industry-Leading 480W Bifacial Solar Power
Designed for serious off-grid users, the Zoupw 480W portable solar panel captures sunlight from both sides, increasing total energy generation by up to 30%. Under optimal conditions, rear-side light reflection can boost output by an additional 144W, delivering exceptional real-world performance.
Advanced Non-Destructive Cell Technology
Unlike conventional cut-cell panels, ZOUPW utilizes custom N-Type cells crafted with an advancednon-destructive cutting process. This completely eliminates invisible micro-cracks caused by mechanical stress—delivering rock-solid cell integrity, ultra-low power degradation, and a significantly longer service life.

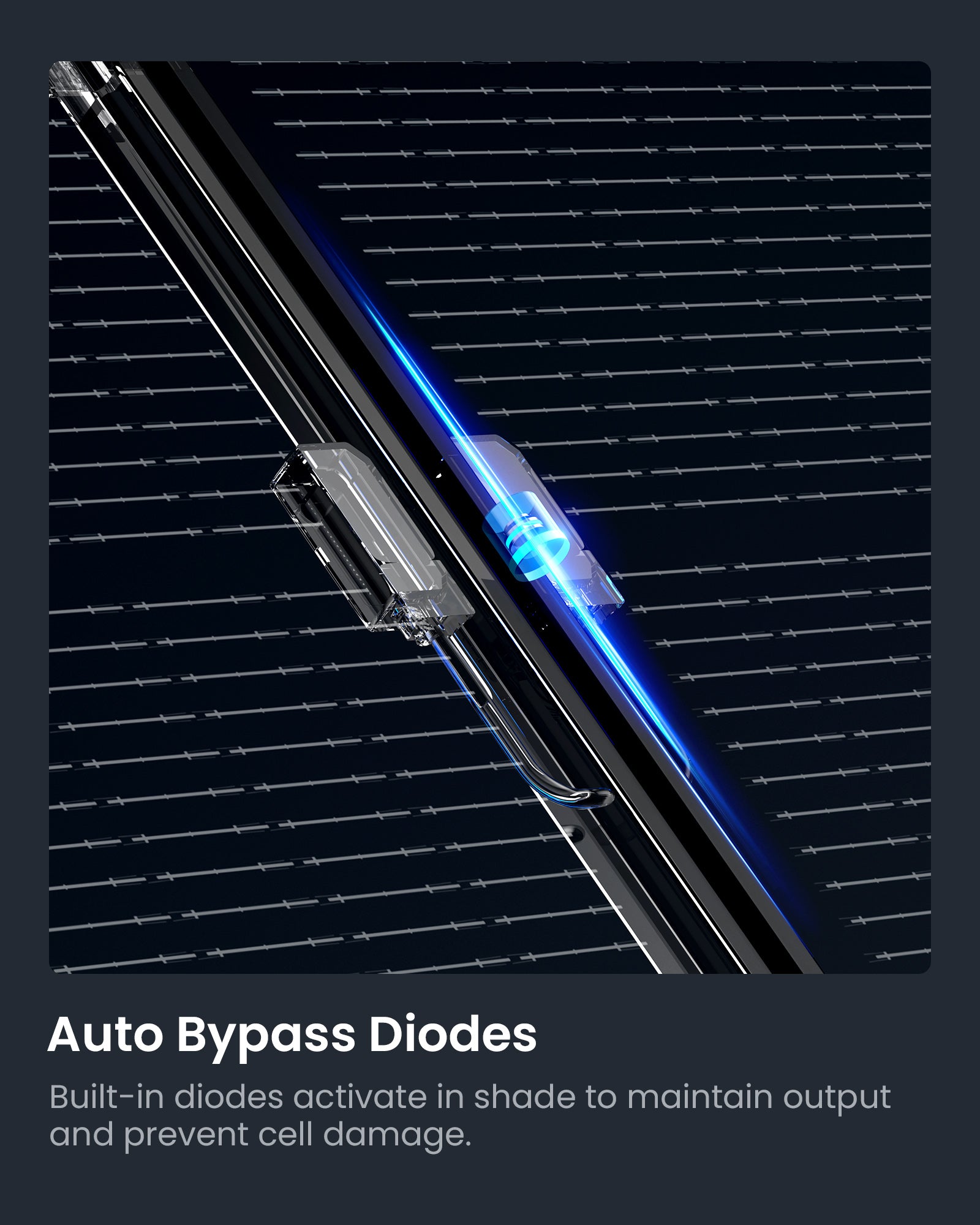

Built-In Auto Bypass Diodes
Integrated auto bypass diodes automatically activate under partial shading to maintain power output, reduce energy loss, and prevent hotspot damage—ensuring safe and reliable operation in real-world outdoor conditions.

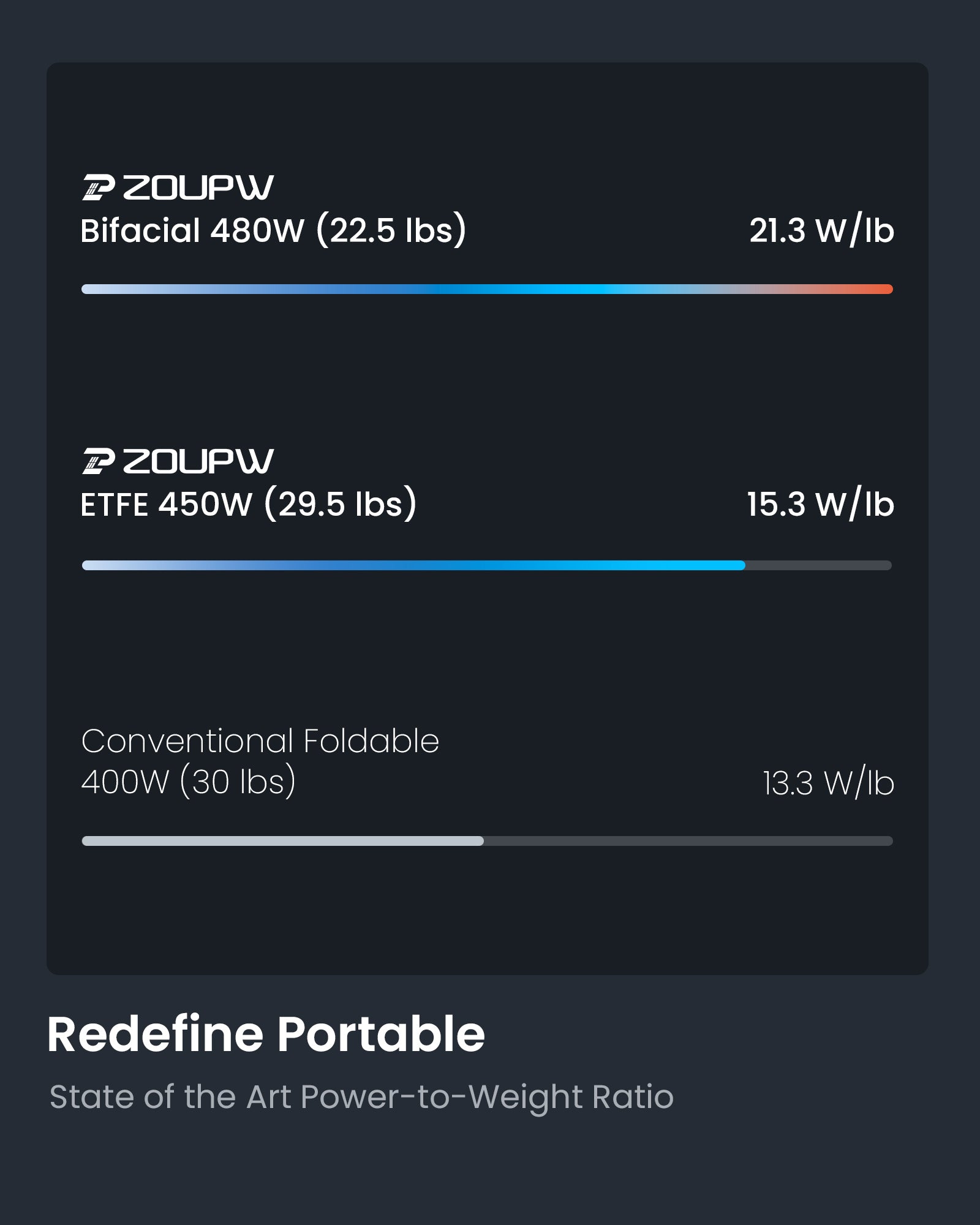

Lightweight Composite Design with Superior Power-to-Weight Ratio
At just 22.5 lbs, this 480W solar panel delivers an industry-leading 21.3 W/lb, making it easier to transport, set up, and reposition than traditional foldable panels—without sacrificing power.

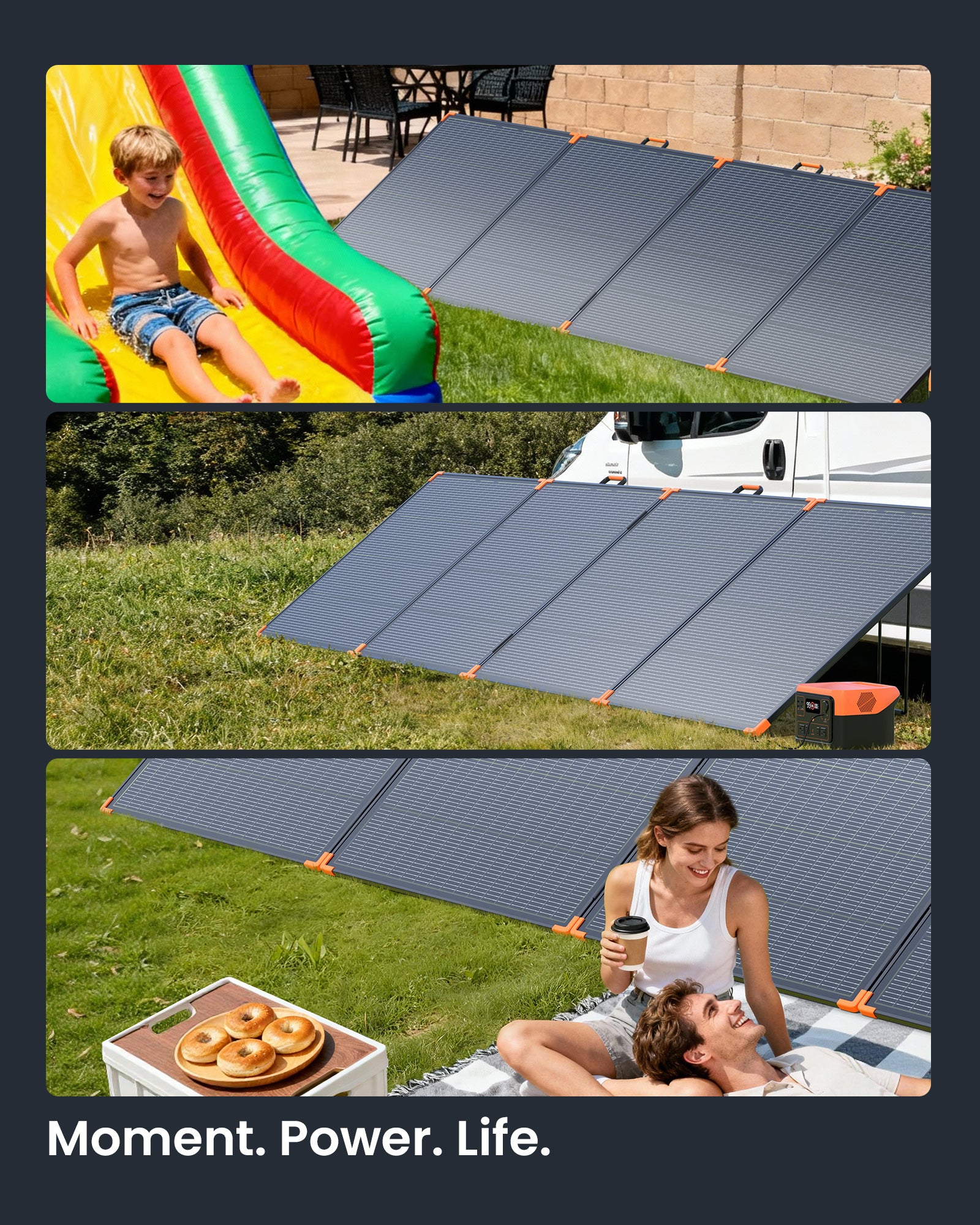

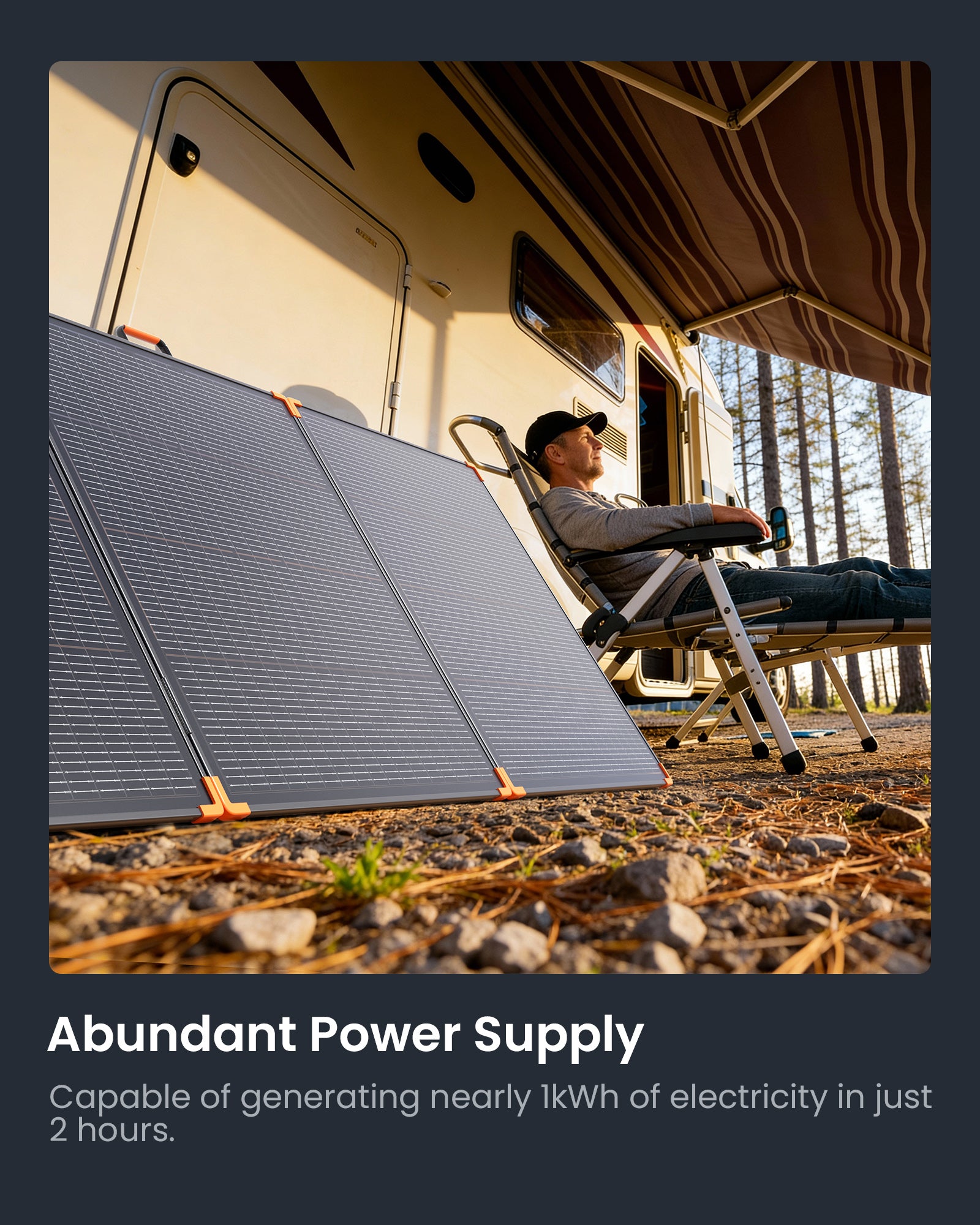

Folding Solar Panel for RV, Camping & Home Backup

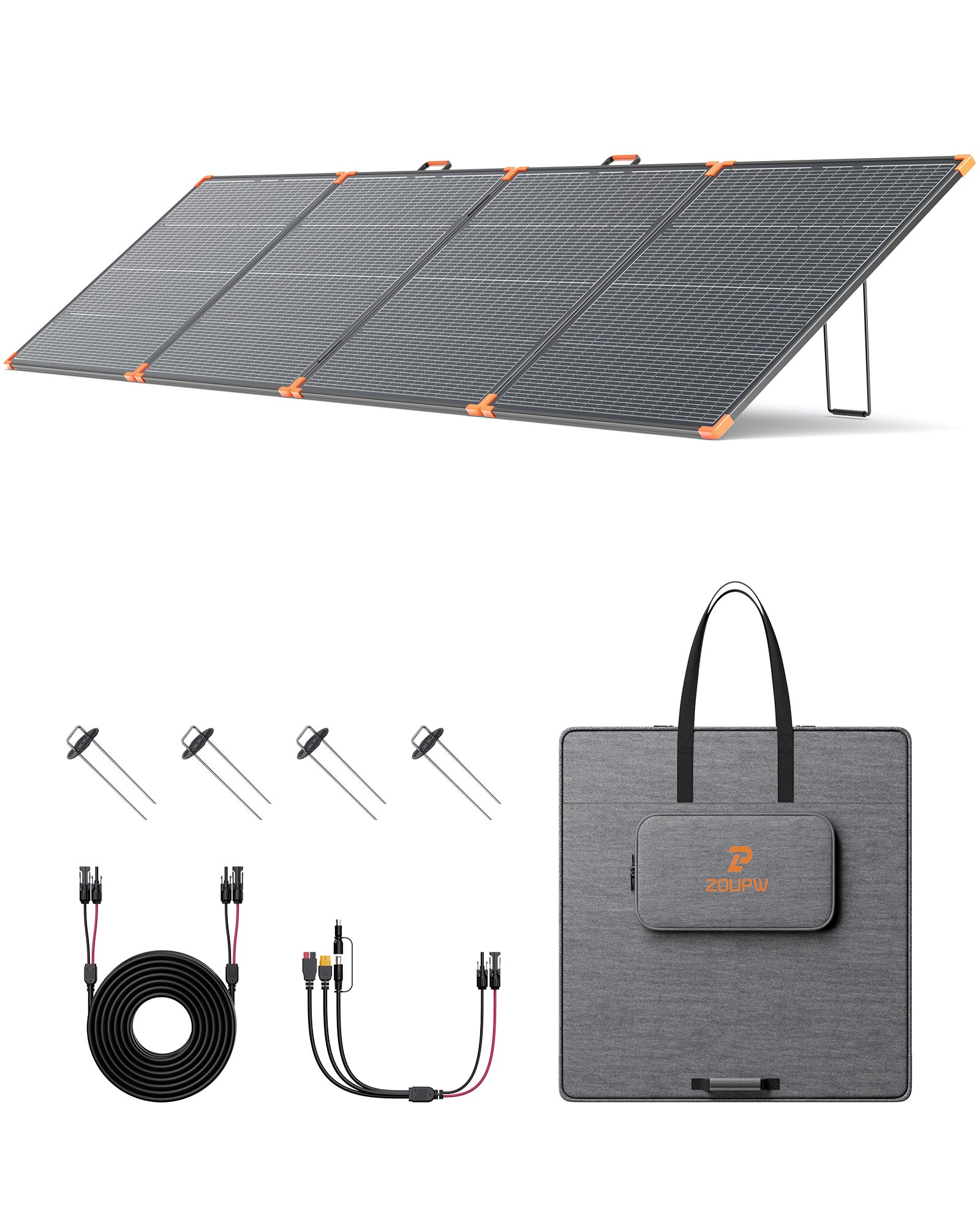

What's in the box?
Specs
| 型番 | ZP-DS480W |
| SKU | ZP480W-DSV1-US |
| 最大出力(Pmax) | 480W |
| 最大出力動作電圧(Vmp) | 42.5V |
| 最大出力動作電流(Imp) | 11.3A |
| 開放電圧(Voc) | 49.3V |
| 短絡電流(Isc) | 12.0A |
| セル種類 | 単結晶シリコン N型 182mm |
| フレーム | アルマイト処理アルミニウム合金 |
| 保護等級 | IP68 |
| 出力公差 | 0～5% |
| 動作温度範囲 | -4°F ～ +140°F / -20℃ ～ +60℃ |
| 外形寸法 | 138.58 in × 32.56 in × 3.35 in / 3520 × 827 × 85 mm |
| 折り畳み寸法 | 34.65 in × 32.56 in × 3.35 in / 880 × 827 × 85 mm |
| 質量 | 22.49 lb / 10.2 kg |
Downloads
User Manual
ZOUPW 480W 両面発電ポータブルソーラーパネル | 折りたたみ式 N型 16BB Guide (PDF)
FAQ
ZOUPW 480Wソーラーパネルは、私のポータブル電源に対応していますか？
このソーラーパネルは従来のETFEパネルと何が違うのですか？
両面発電（デュアルトランスペアレント）太陽光発電技術は、どのように出力が向上するのでしょうか？
Nice and compact, weight is pretty light also. The panel exceeds my expectations!
That said I would have gotten the 480 watt panel they just came out with which is even lighter!
I do not own the panels but I wanted to provide constructive feedback as to why I would not own them. I'm giving 5 stars as to not tarnish reputation. This is just my own 2 cents. First bullet point. It is an extreme pain to constantly have to put the panels up and stake them down. They are so light they will topple or the wind will catch them and you risk damaging the panels. Secondly, the bifacial function is pointless if you lay them flat. This means constantly having to rotate them to position for optimal Sun. Additonally you'll only see bi-facial gain on reflective surfaces, so in the grass and dirt, nope, but light sand/concrete, yes. Problem is its easy to stake in grass, but hard to secure them on concrete. I prefer to just lay 2 Bluetti PV350s flat and get the same output. You could theoretically run two in parallel to max out say a Bluetti Elite 300 but you need to make sure the Y branch XT60 is rated to handle above 12AWG, since at safe operation under 80% load it can only handle 16A continuous. You are much safer so long as the main branch end is 10AWG. Whether you "trust" the maker of said cable, good luck. With so many knock off XT60 connectors it's a 50/50 shot. Sure they'll tell you its rated for 20A or 30A continuous but they are lying. Lastly, this panel can become too dangerous to use for 60V power stations due to cloud edge effects and cold weather panels. You need to apply a 20% penalty to account for this, meaning your safest open circuit voltage is 48V. The OCV of this panel is 49.3V. You would need to have a perfect storm of cold weather, a long extension cord, and cloud-edge to cause a spike over 60V, but there are other anomalies as well. There exists surge protection but its too costly. I simply prefer to have a safer voltage buffer. Lastly, how sturdy is the aluminum frame? It is marketed for weight savings, but how long before it heat warps or causes the panel to come out of the frame? Food for thought.
Thank you for taking the time to share such detailed feedback—we genuinely appreciate the thoughtful discussion.
You're absolutely right that every solar panel design involves trade-offs. Our foldable panels are designed primarily for portability, making them ideal for camping, RV travel, backup power, and other applications where users need to transport and deploy their panels frequently. For customers looking for a permanent installation, we also offer rigid glass solar panels, which are better suited for fixed mounting.
Regarding bifacial performance, we agree that the rear side requires reflected light to generate additional power. Raising the panel with its built-in kickstands isn't an extra step unique to bifacial panels—it's also the best way to optimize the front-side output by improving the angle toward the sun. On hard surfaces such as concrete, many users simply secure the kickstands with sandbags, rocks, or other weights when stakes aren't practical.
Partial shading is another good point. Like all solar panels, shading can reduce power output. To help minimize these effects, our panels incorporate bypass diodes that allow unaffected cell sections to continue producing power when part of the panel is shaded.
As for the aluminum frame, it was carefully selected to provide an excellent balance of strength, durability, and portability. Many independent reviewers and thousands of customers have been using our foldable panels in real-world conditions, and their experience has shown the frame to be both reliable and robust.
We sincerely appreciate your perspective. Feedback like yours helps customers better understand the differences between portable foldable panels and fixed rigid panels, allowing them to choose the solution that best fits their own needs.
Good quality, but these do not weigh anywhere close to 22.49lb... They easily exceed 30lb without the storage bag on my scale. Company should update the spec sheet to provide the accurate weight.
Thank you for your feedback! The listed 22.5 lb (10.2 kg) refers to the net weight of the solar panel itself. When the protective carrying bag, cables, and accessories are included, the total weight will naturally be higher. We appreciate you bringing this to our attention, and we'll review our product description to make the distinction between net weight and package weight clearer for future customers.
Unique portable solar panel. It arrived on time, was carefully packed, and easy to set up right out of the box.
Consistent 360W in summer Florida sun. Would buy it again. Hopefully the price will come down.
So far they’ve been great. Simple setup, easy connections, and amazing power.
Works better than expected.
Will order more when available...
I received both of my panels within a few days. No issues at all. And they look great …though I haven’t tried them yet. Very happy so far!
This panel generates more than 480 watts in the hot Florida sun. It is fairly priced for the output delivered. I believe that most panels are doing well at 80 percent of rated watts, this one hit 500 in a hot sunny Florida day. There 450 did the same thing but is heavier. Either is a good choice.
Price vs performance for portable has no competition currently.
Works as advertised!
I purchase 2-480 panels amazing results 525-550 watts. I purchased 5 -more with a total of 7 panels to run my Ecoflow Delta Xtra X. These panels are amazing . I will purchase more when they go on sale.
I have not received my order yet 6-5-2026 after four weeks of waiting is something wrong?
Hello,
Thank you for bringing this to our attention, and we sincerely apologize for the delay.
We shipped your order shortly after it was placed; however, FedEx was unable to deliver to the PO Box address provided and the package was returned during transit. Since then, we have attempted to contact you multiple times by email, text message, and phone to obtain an alternative physical shipping address, but unfortunately we have not yet received a response.
We are still actively trying to reach you and will be happy to reship your order as soon as we receive a valid street address. Please check your email, spam folder, text messages, or contact us directly at services@zoupw.com so we can resolve this for you as quickly as possible.
Thank you for your patience and understanding. We look forward to getting your order delivered.
Best regards,
ZOUPW Support Team
Great panel. Produces above it's rated wattage.
Seems solid and functional. Getting about 450 watts in spring sun in Las Vegas. Happy with my purchase. Good cable options included too. Lighter than my 400 watt suitcase from another company. these do work together in parallel config,
Got this as an accessory for my Ecoflow DP3. Was immediately impressed with how easy it was to set up.
The moment I plugged it in, my Ecoflow showed 522 watts input. Adjusted slightly to aim directly at the sun and got 535. Thumps up!
You will absolutely not be disappointed in these panels the 100.00 dollar off coupon is what sealed the deal. Can't wait to go camping with these they make my other panels from different manufacturers look cheap by comparison
when will the zoupw 480w panel be available to purchase? 6.28.2026
Thanks for your interest! The 480W N-Type 16BB bifacial panel is currently out of stock due to very strong demand and limited material supply. We expect a small batch to arrive around late July, with additional inventory released as production allows. Please keep an eye on our website, or feel free to email us—we'll be happy to notify you when it's back in stock.
