Zoupw 230W Bifacial Composite Material Panel

(0)

¥44,800

  • 230W Powerful Output with 25% High-Efficiency N-Type Cells
  • Up to 30% More Power from rear Side (Bifacial Design)
  • Lightweight, Ultra-Durable Composite Material—Resists Bending, Scratches & Heat

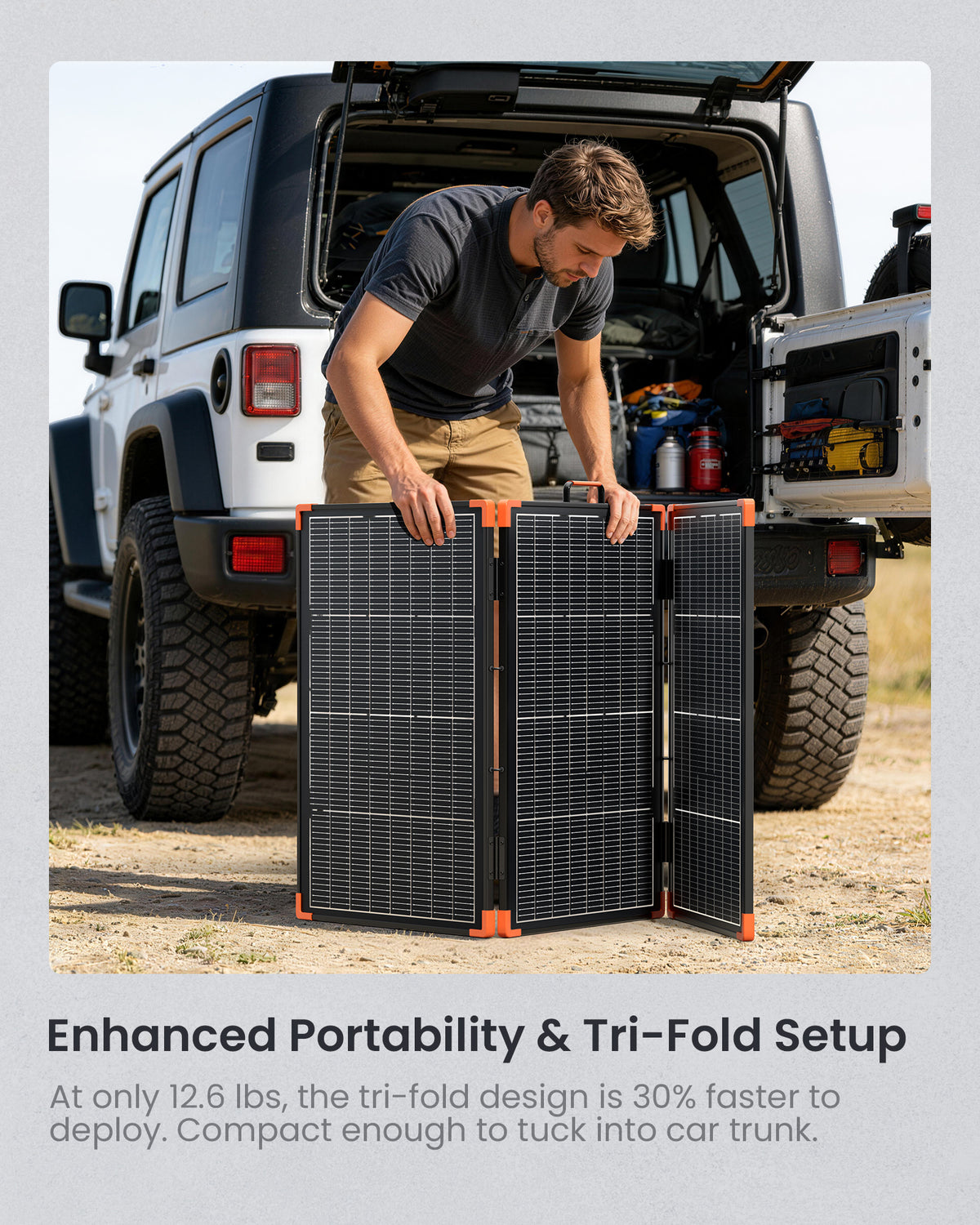

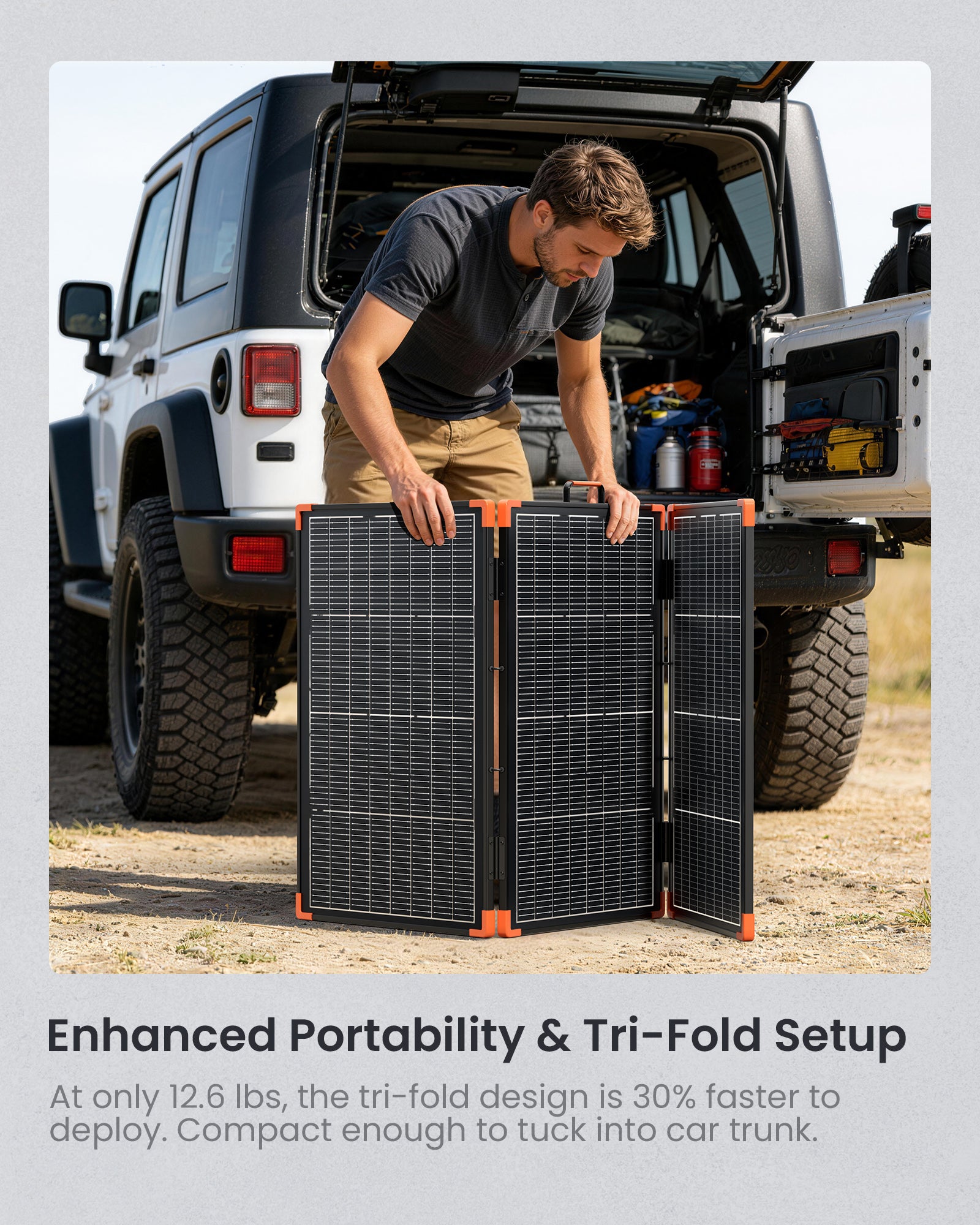

  • Foldable & Compact Aluminum Frame for Easy Outdoor Portability
  • Compatible with Most Portable Power Stations & Solar Generators
  • Reliable Charging Performance Even in Low-Light Conditions
% Online exclusive discount
230W10
Applied at checkout

Technical Specifications

  • Maximum Power at STC (Pmax)：230W

  • Maximum Power Voltage at STC (Vmp)：20.0V

  • Maximum Power Current at STC (Imp)：11.5A

  • Opencircuit Voltage at STC (Voc)：23.2V

  • Shortcircuit Current at STC (Isc)：12.2A

Connection & Compatibility

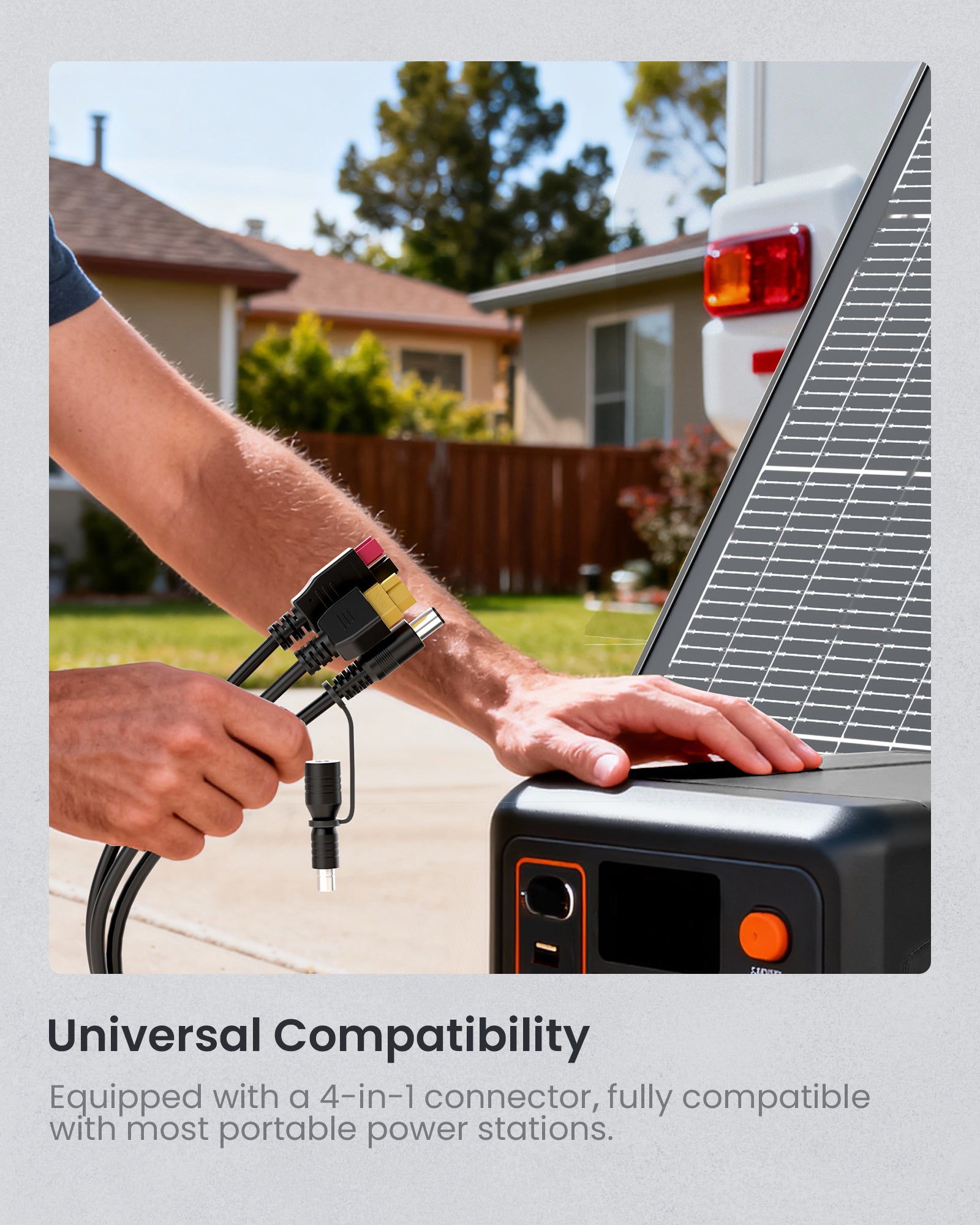

  • Supports DC8020, DC7909(8.0), XT60, Anderson and universal solar connectors.

  • Wide compatibility with power stations.

Dimensions

  • Dimension (±5mm)：1740×825×21 mm (68.5×32.5×0.8 inches / 5.7×2.7×0.1 feet)

  • Folded Dimension (±5mm)：580×825×63 mm (22.8×32.5×2.5 inches / 1.9×2.7×0.2 feet)

  • Weight (±0.2kg)：5.7 kg (12.6 lbs)

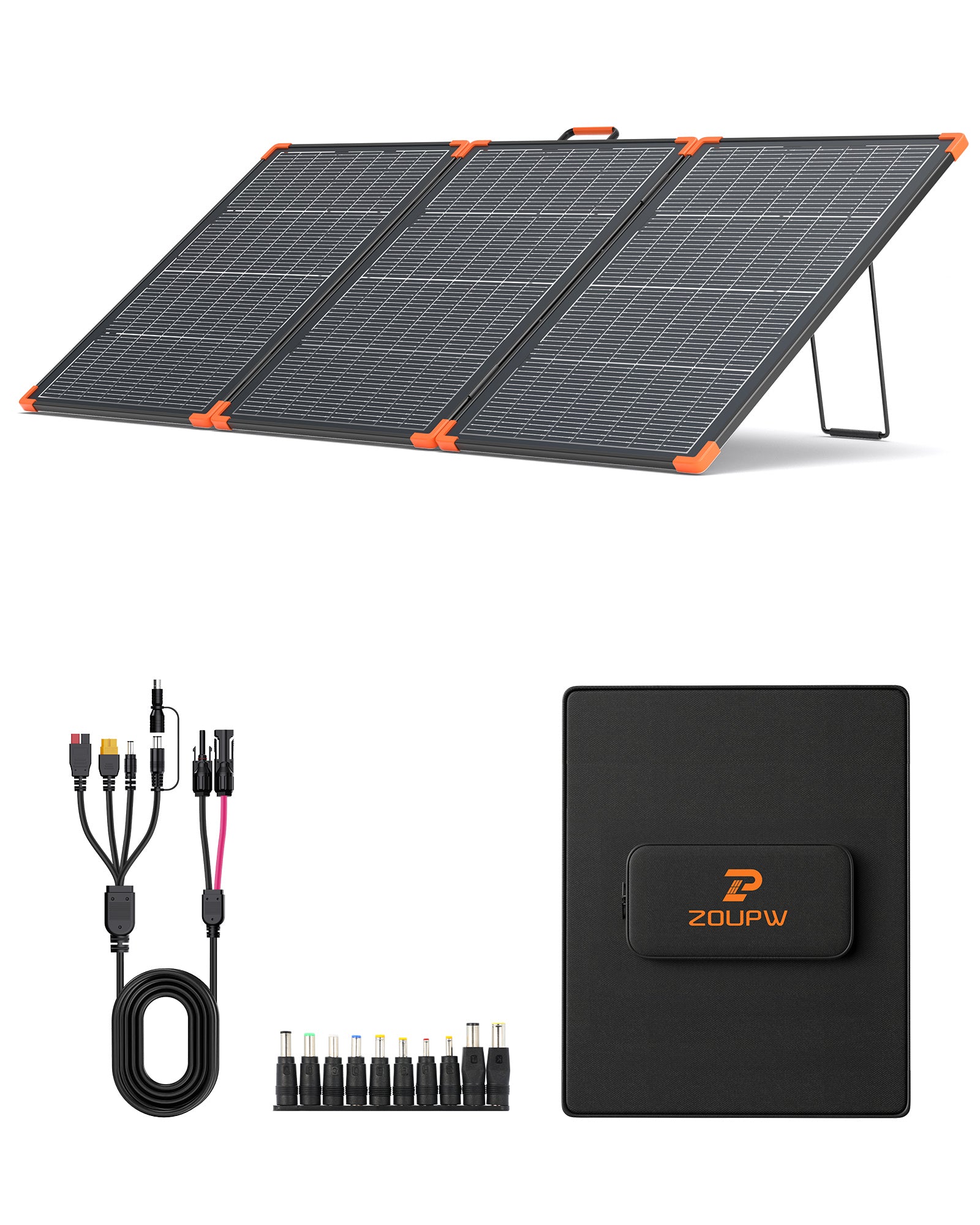

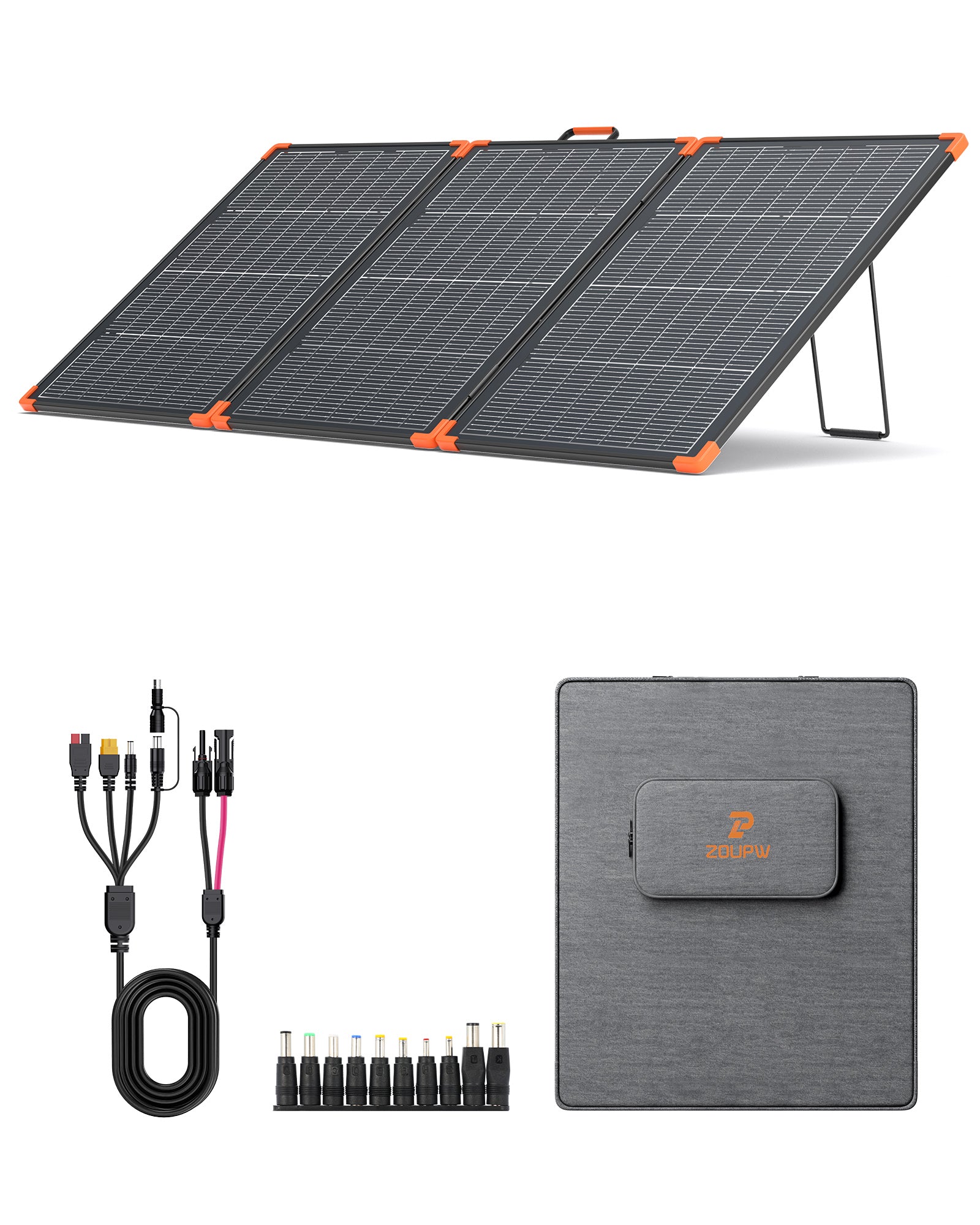

1. Bifacial Solar Panel ×1
2. Storage Bag ×1
3. User Manual ×1
4. Solar connector to DC5521/DC7909 (8.0)with DC8020 Adapter/XT60/Anderson Cable ×1
5. DC5521 (Female) to DC6544/6330/5525/5521/5517/4817/4077/55135/7450/9555(Male) Adapters Set ×1

User Manual download

シェア

Zoupw 230W Bifacial Composite Material Panel

Zoupw 230W Bifacial Composite Material Panel

¥44,800

¥44,800

FAQS About Zoupw 230W Bifacial Composite Material Panel

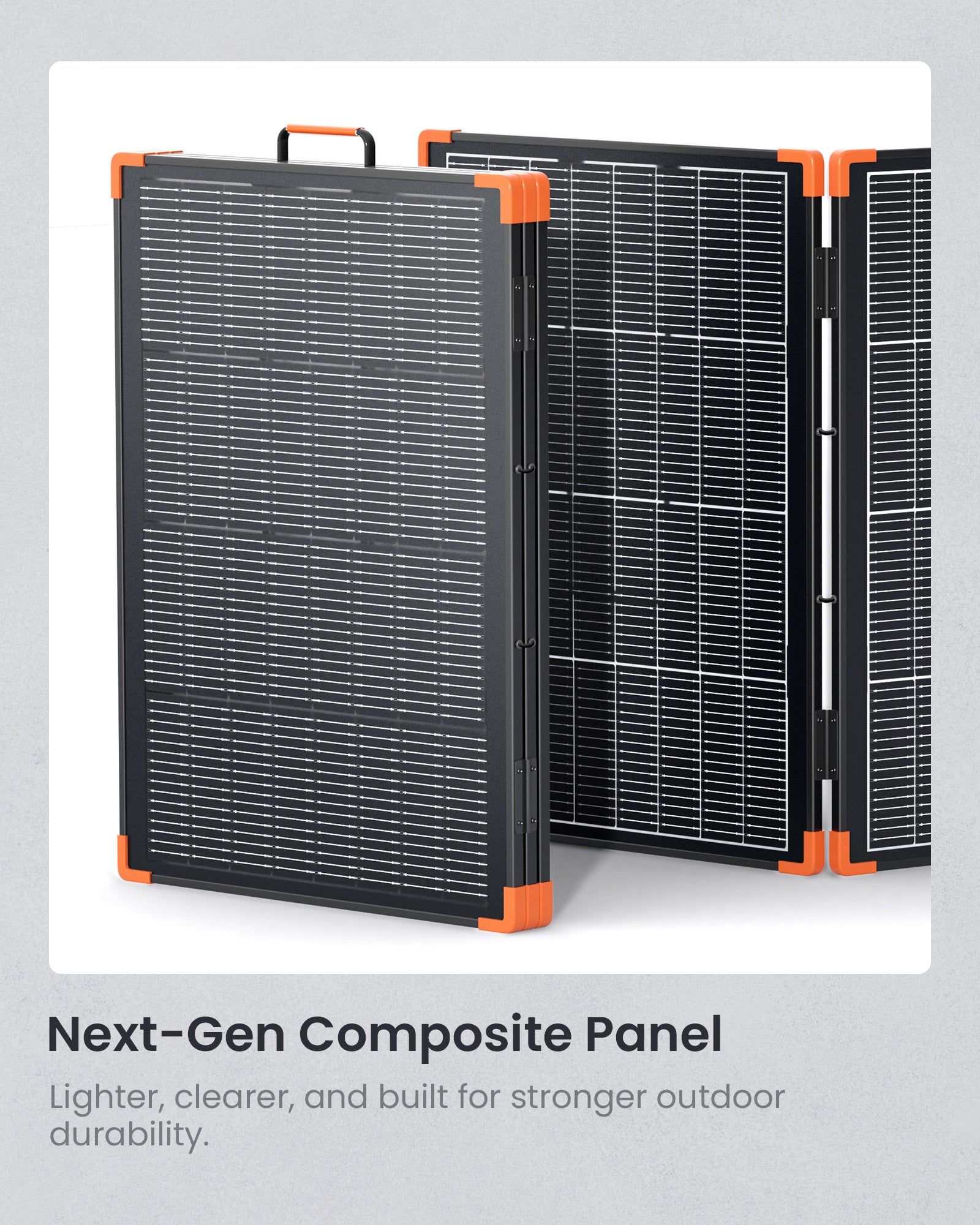

Not at all. This solar panel features an industry-exclusive composite material panel, making it much lighter than traditional glass or ETFE solar panels, while actually delivering greater structural strength.

Compared to conventional modules, this advanced composite material provides:

  • Higher hardness and impact resistance
  • Enhanced light transmittance for improved energy conversion
  • Superior heat resistance, helping maintain stable output even in high-temperature environments

This innovation represents a true generational upgrade in portable solar technology—combining lightweight portability, durability, and high efficiency in one foldable solar panel.

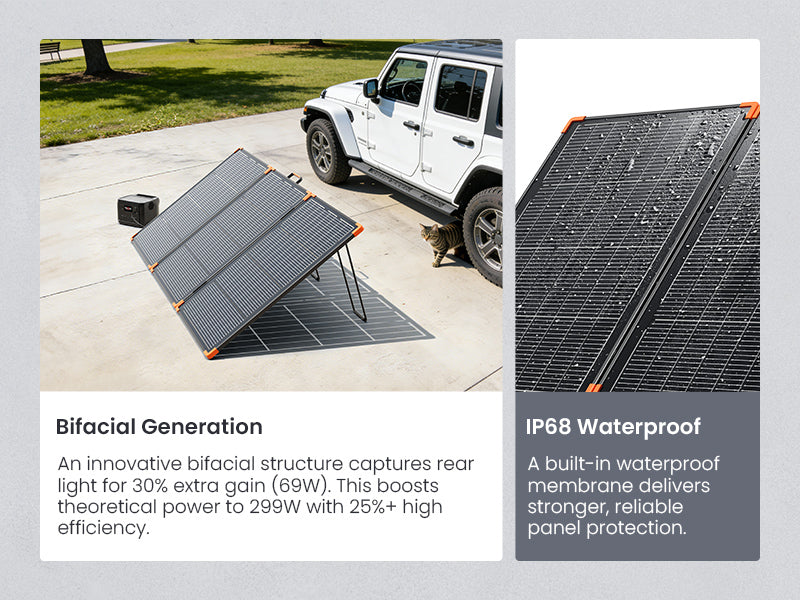

Thanks to its dual-transparency (bifacial) composite design, this solar panel can capture reflected and ambient light from the rear side to significantly boost total output.

Under optimal conditions, the backside gain can reach up to 30%, depending on environmental factors such as ground reflectivity, installation angle, and surrounding light conditions. Surfaces like sand, snow, light-colored concrete, or gravel can further enhance this gain.

This means more usable energy without increasing panel size, making it ideal for off-grid power, RVs, outdoor adventures, and emergency backup scenarios.

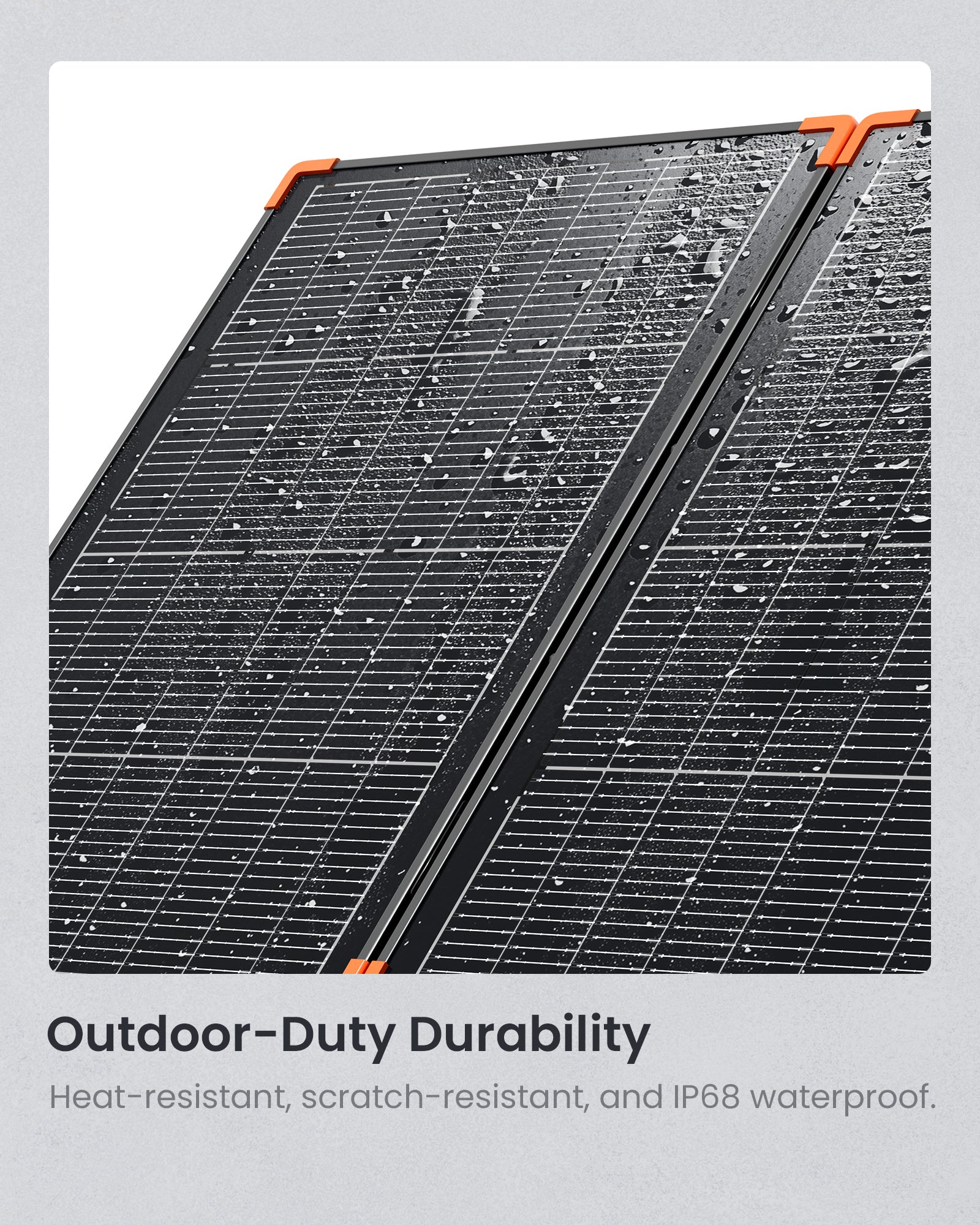

Yes, the ZOUPW 230W tri-fold solar panel features IP68 fully waterproof construction with a built-in waterproof membrane, scratch-resistant composite surface, and sturdy aluminum frame. It withstands rain, dust, and rough handling—perfect for camping, RV living, emergencies, or backyard use in the USA. At just 12.6 lbs with enhanced portability, it's built to last with 3 years warranty and universal 4-in-1 connectors.
